Description

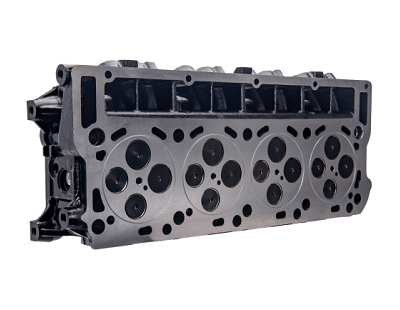

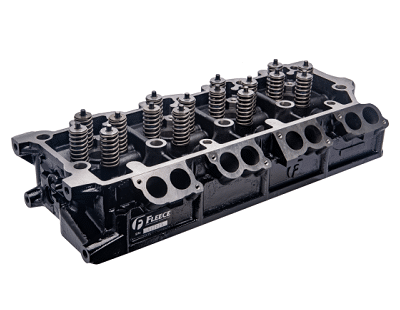

Freedom Series HD 6.0L Ford Super Duty Powerstroke Loaded Cylinder Head
Options:
- 18mm Dowel (FPE-61-10011-HD)
- 20mm Dowel (FPE-61-10012-HD)
- All 20mm heads are configured for 2-bolt rocker box
Application Notes:
- Fleece Performance recommends the use of 6.4L pushrods (Ford # 8C3Z-6565-B) when installing these cylinder heads. The 6.4L pushrod is 0.050″ shorter in length than the 6.0L and will accommodate the tolerance stack ups that can be encountered with a replacement cylinder head.
- Requires use of all new head studs and inner row bolts. DO NOT REUSE HEAD STUDS OR BOLTS!
New Fleece Performance Freedom Series HD Cylinder Heads for the 2003-2007 6.0L Ford Power Stroke. Manufactured in Freedom Racing Engine’s state-of-the-art shop and guaranteed to meet or exceed factory specifications. Built on a brand-new casting that has been engineered from the ground up for increased durability and longevity. Equipped with hardened, oversized press-in valve seats, new valve guides, springs, valves, and valve seals and ready to install. The one-piece O-rings in the head ensure maximum cylinder sealing. Perfect for a daily driver or heavy-duty towing application where reliability and uptime are a must.
Features:
- Brand-new, higher tensile strength casting
- Race-proven formula with hardened, oversized press-in valve seats provides maximum durability and longevity
- Fleece Performance exclusive single-piece O-ring design ensures complete combustion sealing
- New valvetrain including Stainless Steel / Inconel alloy valves, springs, retainers, and keepers
- No Core Return Required
- Fleece Performance 1-Year Limited Parts Warranty
